Mechanical vs Hydraulic Disc Brakes: The Ultimate 2025 Comparison

1. Introduction

Think of yourself on a very steep winding road. You are catching fire. You must be sure that your brakes are going to take effect immediately and that you can rely on them. Nothing is more important than the kind of braking system you have on your bike or vehicle at that moment.

This brings us now to a very important debate in the present day braking technology, mechanical disc brakes versus hydraulic disc brakes. This is a decision that confronts bicycle riders, e-bike users, and motor-elated enthusiasts all over.

The short answer is that generally hydraulics brakes are more efficient. They offer more power and better feel. For most uses, they represent the best braking technology available.

But mechanical brakes still have strong advantages. They're simpler, cost less, and are much easier to fix. This is especially true when you're far from help.

This article will walk you through a detailed comparison. We'll look at how each system works. We'll compare their performance side by side. We'll examine real situations to help you choose the right system for your needs.

2. The Fundamentals: How Do These Brakes Actually Work?

Before we compare them, you need to understand how each system works. Both use a caliper to squeeze pads against a rotor. But they transfer force from your hand to the wheel in completely different ways.

Mechanical Disc Brakes: The Power of the Pull

Think of a mechanical brake like a puppet on a string. It uses a cable system.

When you squeeze the brake lever, you pull a braided steel cable. This cable sits inside a housing that doesn't compress.

The cable runs from the lever to the brake caliper. The pulling force moves a lever arm or cam on the caliper. This pushes the brake pads against the spinning disc rotor. The friction slows you down.

The main parts are the brake lever, steel cable, housing, caliper assembly, and brake pads.



Hydraulic Brakes: The Force of Fluid

Hydraulic brakes work using fluid pressure, like the hydraulic system in a car. When you squeeze the brake lever, you don't pull a cable. Instead, you push a piston inside a master cylinder in the lever body.

This pressurizes a fluid that doesn't compress. The fluid is either mineral oil or DOT fluid. It sits in a sealed hose.

This fluid pressure travels through the hose to the brake caliper. There, it pushes on larger pistons. These pistons push the brake pads against the rotor with great force.

This system uses Pascal's Principle. A small force applied to the fluid at the lever becomes a much larger clamping force at the caliper. This gives you powerful braking with little effort.



3. Head-to-Head Breakdown: Mechanical vs Hydraulic Disc Brakes

Now that we understand how they work, let's compare the two systems directly. We'll look at the things that matter most: power, feel, maintenance, and cost.

Feature	Mechanical Brakes	Hydraulic Brakes
Stopping Power	Good to Very Good	Excellent
Modulation/Feel	Less precise, can feel "on/off"	Superb, fine-grained control
Maintenance	Simple, field-serviceable	Complex, requires bleeding
Cost	Lower initial and parts cost	Higher initial and service cost
Weather Performance	Good, but cables can freeze/corrode	Excellent, sealed system

Performance & Stopping Power

Hydraulic systems clearly win on raw stopping power. The force multiplication of fluid pressure means hydraulic brakes can create much more clamping force on the rotor than a cable system.

Even more important than raw power is modulation. This is your ability to control the exact amount of braking force. Hydraulic brakes excel here. They offer smooth, gradual control. You can lightly touch the brake with one finger to slow down a little. Or pull harder for an emergency stop. It's all perfectly predictable.

Mechanical brakes are powerful enough for many situations. But they often feel less refined. They can sometimes feel more like an on/off switch. This makes it harder to apply just the right amount of pressure.

Maintenance & Serviceability

This is where mechanical brakes have a clear advantage. Adjusting for pad wear or cable stretch takes just minutes with a basic multi-tool. If a cable breaks during a long ride, it's a simple and cheap part to replace on the spot.

The downside is that these systems are exposed to the environment. Water and dirt can get into the cable housing. This causes friction, rust, and sluggish lever feel.

Hydraulic brakes are sealed systems. This makes them mostly immune to dirt and water contamination. They need adjusting much less often. However, their maintenance is more complex. They eventually need a "bleed." This is a process of removing air bubbles and old fluid from the system. It requires special tools, fluid, and knowledge.

There are two main fluid types. DOT fluid is also used in cars and absorbs water over time. Mineral oil repels water. Each needs its own specific bleed procedure. They should never be mixed.

Cost: Initial Purchase and Long-Term

Mechanical disc brakes cost much less to make and buy. This makes them the standard choice for entry-level to mid-range bikes. They're also a budget-friendly upgrade. Replacement parts like cables and housing are cheap and easy to find.

Hydraulic systems cost more upfront. This is due to their more complex parts like machined calipers, pistons, and master cylinders. While they don't need new cables, the special fluid and bleed kits needed for service add to long-term costs.

Feel & Ergonomics

The lever feel is dramatically different. Hydraulic levers need very little effort. Often just one or two fingers provide a light and consistent pull every time.

Mechanical levers need more hand strength to achieve the same stopping power. If the cables aren't perfectly maintained, the pull can feel heavy, rough, or spongy. This leads to more hand fatigue on long descents.

4. Beyond Bicycles: The Wider World of Hydraulic Brakes

Hydraulic force principles aren't limited to bicycles. This highly effective technology is standard in almost every application where reliable, powerful stopping is essential. Understanding these applications shows the true versatility of hydraulic systems.

What About Hydraulic Rim Brakes?

While disc brakes have become the norm, hydraulic rim brakes exist as a high-performance niche in cycling. Brands like Magura champion them. They replace the traditional brake cable with a hydraulic hose.

This hybrid system combines the immense power and superior control of hydraulics with the classic rim brake format. Some trials riders and road cyclists favor them for their incredible stopping power applied directly to the rim. However, they're less common in the mainstream market.

Heavy-Duty Stopping: Understanding Hydraulic Trailer Brakes

When you tow a heavy boat or camper, the trailer needs its own braking system. Hydraulic trailer brakes are a common and effective solution. They often use a "surge brake" setup.

These systems work independently from the tow vehicle. A master cylinder is built into the trailer tongue. When the tow vehicle slows down, the trailer's momentum pushes it forward. This compresses the master cylinder. This activates the hydraulic brakes on the trailer's axles. It provides proportional stopping power without any electrical connection to the car.

The Best of Both Worlds? Electric Over Hydraulic Trailer Brakes

For the ultimate in heavy-duty trailer braking, electric over hydraulic trailer brakes offer the most advanced solution. This system combines hydraulic reliability with electric controller responsiveness.

An electric signal from an in-cab brake controller in the tow vehicle goes to an actuator on the trailer. This actuator includes an electric motor powering a hydraulic pump. It instantly pushes the brake fluid and it applies the trailer brakes. This yields the quicker response time along with the strongest and most controlled braking. This is perfect for big fifth-wheels, horse trailers and commercial equipment.

5. Real-World Scenarios: Which Brake Is Right for YOU?

Technical specs are useful. But the best choice depends on you—your riding style, budget, and how much you like or dislike maintenance.

For the Daily Commuter & Casual Rider

For daily trips to work, running errands, or enjoying a park path, reliability and low cost matter most. Performance demands are relatively low.

In this case, quality mechanical disc brakes are often the perfect choice. They provide plenty of stopping power for city environments. They're cheap to maintain. If something goes wrong, any bike shop can fix it quickly and cheaply.

For the Mountain Biker & Performance Enthusiast

Whether you ride technical trails, on steep hills or you race, your brakes are one of your main performance instruments. You require extraordinary power and conscious control.

In this case, hydraulic brakes are not a luxury. They're essential. You get an enormous amount of confidence to be able to touch the brake with only one finger over a rock garden. It allows holding the handlebars better. The consistent power and superior heat management are critical for safety and speed on demanding terrain.

For the Long-Distance Tourer & Bikepacker

This is where the debate becomes most interesting. Long-distance cyclists need high performance but also absolute reliability in remote locations.

While hydraulic brakes offer a better riding experience with less hand fatigue on thousand-mile journeys, the risk of system failure far from civilization is serious. A cut hydraulic hose can end your trip.

That is why, mechanical brakes are preferred by many experienced tourers. It is priceless to know that you can resolve virtually any issue by using only a multi-tool and a spare cable. This is particularly so when you are hundreds of miles away to the nearest bike shop.

6. Upgrading and Maintaining Your Brakes

Whether you're looking to upgrade your current system or keep it running smoothly, understanding the next steps is crucial.

Considering an Upgrade to Hydraulic Brakes?

So if you are still on mechanical brakes and would like to improve your performance by a huge margin upgrading to hydraulics would be one of the most noticeable changes you can make. The all-weather power, level of control, and lever feel is instantly felt.

To more extreme riders needing a dramatic increase in stopping ability particularly on heavier e-bikes or riders pushing the limits on the trail, the changeover to a 4-piston system is a game changer. Such a product as the ACCEBIKE 4 Piston Hydraulic Disc Brake has outstanding control and performance. This makes it a popular choice for a meaningful upgrade.

Maintenance Checklist

Proper maintenance is key to getting the most out of either system.

· Mechanical:

o Regularly check for cable stretch. Adjust barrel adjusters or cable anchor bolts to compensate.

o Check brake pads for wear. Replace them when they're about 1mm thick.

o Periodically clean and lubricate the caliper's pivot points. This ensures smooth movement.

· Hydraulic:

o Routinely check brake pads for wear. Also check for contamination from oil or other substances.

o Look for any signs of fluid leaks around the lever, hose fittings, and caliper pistons.

o Perform a periodic bleed every 1-2 years. Or whenever the lever feels spongy. This removes air and refreshes the fluid.

7. Conclusion

Mechanical vs hydraulic disc brakes is not a question of which one is better. Well, it is a question of what is better in particular case.

The obvious performance winner is hydraulic brakes. They are more powerful, better controlled and have lighter lever feel. This makes them the benchmark of mountain biking and e-bikes as well as any application in which stopping performance is of the utmost priority.

The mechanical brakes are the kings of simplicity and serviceability. They are a superior, practical option since they are cheaper and can be repaired trailside. They are effective as commuter, tourer and economized bikes.

At the end of the day, the finest brake system is one that best suits your riding style, your inclination to maintain it, and your budget. This knowledge of these fundamental differences will help you make a sound and confident decision.

8. FAQs

1. Can I put hydraulic brakes on any bike?

A significant majority of the contemporary bikes have a disc brake mount (Post Mount or IS Mount) and can be converted to hydraulic brakes. This however, will require you to replace the entire system. These are the levers, hoses and calipers. Mechanical and hydraulic parts do not cooperate. Ensure that your frame and fork are fitted with the right mounting points.

2. How often do hydraulic brakes need to be bled?

 As a general rule, bleed your hydraulic brakes every 12 to 24 months. This ensures peak performance by removing air bubbles and refreshing the fluid. However, bleed them sooner if the lever feels spongy or inconsistent. Also bleed them if the lever pulls all the way to the handlebar. These are signs of air in the system.

3. Are mechanical disc brakes becoming obsolete?

Not a bit. Though hydraulic brakes have penetrated the high-performance sector, mechanical disc brakes are quite topical. They remain in use on touring bikes, bikepacking rigs, commuter bikes, and entry level mountain bikes. Their affordability, convenience of field maintenance and simplicity provide them with long term strengths in those specific applications.

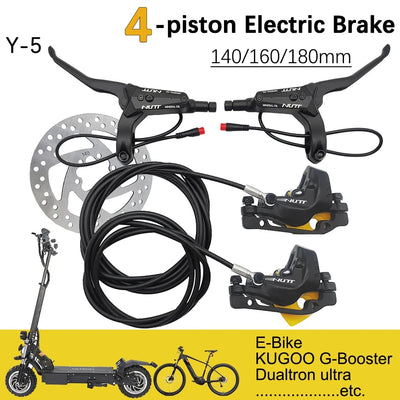

4. What is the main advantage of a 4-piston hydraulic brake over a 2-piston one?

The main benefit of 4-piston hydraulic brake is the elevated braking forces and improved heat dissipation. The four pistons driving the brake pads in place, rather than two, results in a more even clamping force on the rotor. This particularly helps heavier riders, e-bikes, and aggressive downhill or enduro where strong, consistent braking is essential.
